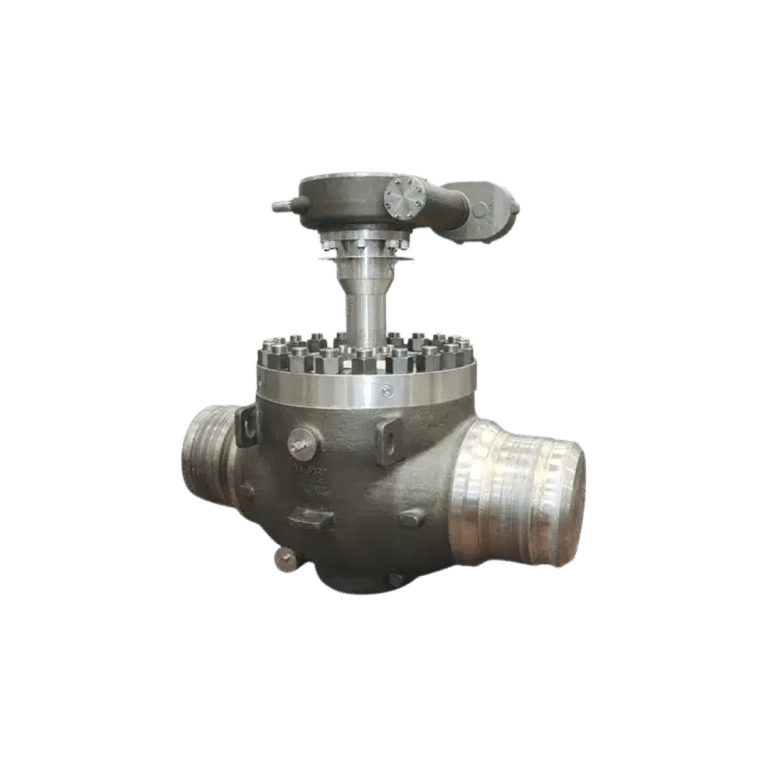

Valbart Cryogenic Ball Valves

Features

The Valbart Cryogenic Ball Valve meets demanding end-user requirements for leak rate and fugitive emission performance. It’s body construction and flexible trim configurations ensure proper safe isolation. It is bi-directional (std) or uni-directional (upon request), side entry or top entry with fire-safe design, with an anti-static feature and automatic cavity relief.

Specification

  • API 6D/6A
  • ASME B16.34
  • NACE MR0175
  • API 6FA/API 607/API598



Size Range:

  • 2 1/2 to 64 (API 6D Valves)
  • 1 13/16″ to 11″ (API 6A Valves)



Pressure Class Range:

  • Class 150 to 2500
  • 2000 psi to 10000 psi



Seating Material: Soft or Metal
