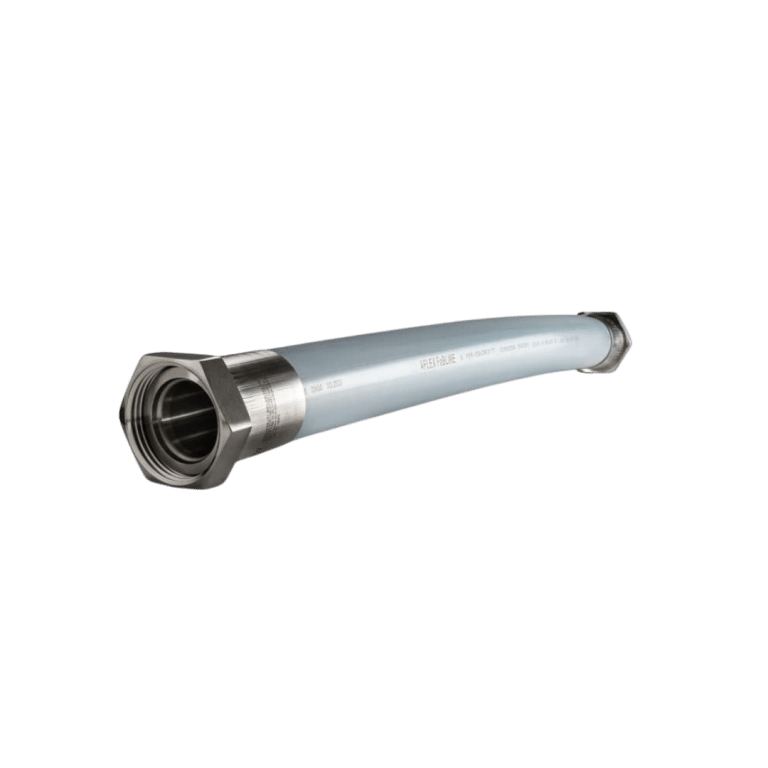

Aflex FaBLINE

Features

With excellent flexibility and kink-free design requiring less force to bend than competitor smooth bore products, FaBLINETM offers a versatile hose solution throughout production processes. FaBLINE hoses carry up to twice the flow of similar-sized convoluted delivery hoses, providing a faster, more efficient processing solution. For applications where hoses are tasked to dispense highly viscous media in precise quantities, traditional rubber hoses can block or burst. FaBLINE’s low friction, smooth bore construction will minimise back-pressure to avoid downtime and material losses.

  • Increased product service life for reduced replacement, downtime and labour costs
  • Reduced CIP downtime with cost savings on chemicals and utilities
  • Superior flow rates for shorter load/unload times and lower processing cost
  • Increased CIP chemical compatibility reduces cycle times and the risk of recall and product spoiling

Specification

Nominal bore size 6 – 80 mm
Nominal bore size 0.25 – 3 in
Outside diameter 11.6 – 92.8 mm
Outside diameter 0.46 – 3.654 in
Max. operating pressure 40 bar
Max. operating pressure 580 psi
Certification and compliance 3.1 Traceability, 3-A 62-02, EC 1935/2004, EC 2023/2006, EN16643:2016, FDA (materials)
Bend radius 19 – 350 mm
Bend radius 0.75 – 13.75 in
Cover EPDM, Platinum cured silicone rubber
